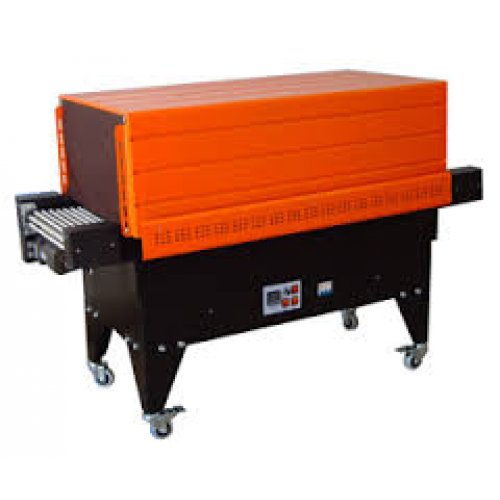

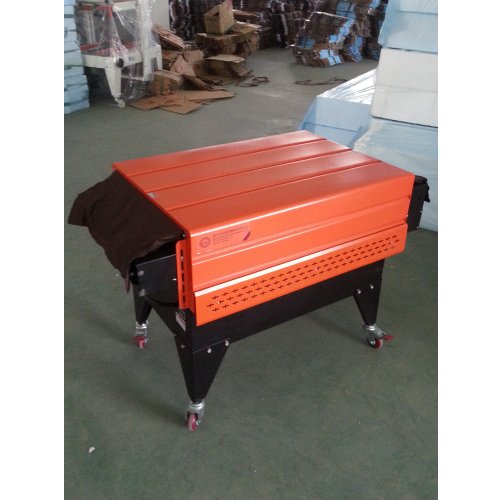

SHRINK TUNNEL BS 4535A (18



Product Video :
Product Description:
BS-A series shrink tunnel adopts hot-wind & down-cyclone structure, intelligence temperature control and
AC variable speed
Regulation. There are two optional conveyors, including Teflon belt type and roller type.
Features:
1. Both the height of tunnel and shutters on two sides are adjustable.
2. Shrink wrapping machine BS-4535LA are designed with lengthened double hot wind
tunnel for higher and better shrinking effect.
Application:
BS-A series shrink tunnel are applied to heat shrinkable film such as PVC, POF, PP etc.
Technical Data:
- Model – BS-4535A
- Voltage (V/Hz) AC 220/50 Hz, 380v (Single or Three Phase)
- Power (kw) 6.5kw
- Conveyor Speed (m/min) 0-10m/min
- Conveyor Loading (Kg.) 10kg.
- Tunnel Size (mm) 450×350 (18”~14”)
- Machine Size (mm) 1200×650×1240mm.
