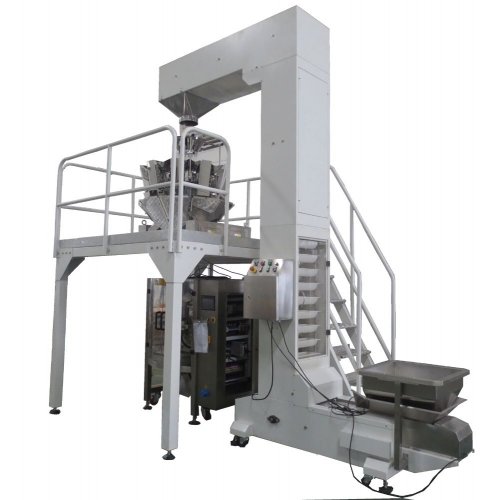

Automatic Multihead Packaging Machine

Product Video :
The vertical form fill and seal machine to produce center sealed pouches from a roll of packaging material of any heat sealable laminate in printed or unprinted form. The machine is ideal baggers to pack various products at high speed. The machine is operated by Single Servo Bag pulling, It is suitable to use in automatic packaging solid material, such as puffy food, shrimp roll, peanut, popcorn, cornmeal,
seed, sugar and salt etc.
MAIN TECHNICAL DATA : | |
Machine model | VFFS 420 |
Structure | Stainless steel |
Film width | Max. 420mm |
Bag width | 50-200mm |
Bag length | 50-250mm |
Film material | Laminate or single-layer |
Packing speed | 15-60bpm |
Power | 220V, 50HZ, 3KW |
Air requested | 0.2m3/min, 0.6Mpa |
Weight | 400KGS |
Dimension | 1450 X 1150 X 1530 mm |
